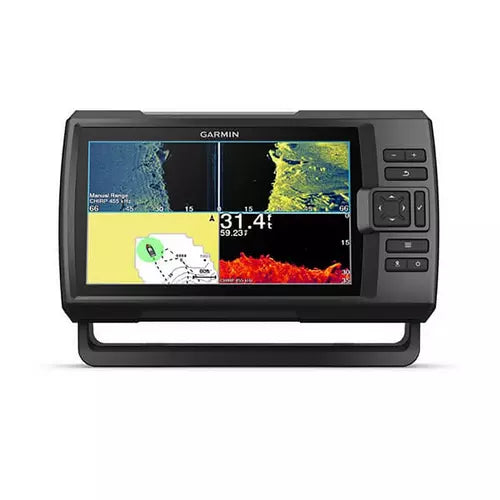

Garmin Striker Vivid 9SV Fishfinder
🔧 Want This Custom Rigged?
Turn this kayak into your perfect fishing machine. Rod holders, electronics, premium accessories, and professional installation.
Configure Your Custom Rig →Key Features:
- Model #: 010-02554-00
- 4-Pin Transducer Ports: 2
- Power Consumption: 9.0
- Current Draw 0.75 - 1.5 A
- Power Input: 12 to 20 Vdc
- Tracks: 50
- Tract Points: 50,000
- Waypoints/Favorites/Locations: 5000
- Mounting Options: Flush, tilt/swivel
- Display Size: 4.4" x 7.8" (11.2 x 19.8cm); 9" diag (22.8cm)
- Weight: 2.4 lbs. (1.1kg)
- Dimensions: 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0cm)
- Built-In Receiver: Yes
- Input: Keyed
- Displays Sonar: Yes
- Supports WAAS: Yes
- Navigation Routes: 100
- Waterproof: IPX7
- GPS: Yes
- Display Type: WVGA color
- Display Resolution: 800 x 480 pixels
Description
9” Fishfinder with Vivid Colors, ClearVu and SideVu scanning plus WiFi and Quick-Draw!
Bright and Vivid Colors show fish like never before! The STRIKER Vivid 9sv from Garmin combines industry-leading sonar with the ability to create custom HD fishing charts thanks to Garmin's Quickdraw Contour software. Built-In WiFi allows use of Active Captain while the internal GPS enables you to mark waypoints and view boat speed. The Garmin STRIKER VIVID 9sv from Garmin offers 7 new color options to see fish and structure in maximum clarity and contrast on a large 9-inch display.
Built-In WiFi allows access to Garmin's ActiveCaptain App. Receive smart notifications such as calls, texts and emails right on your STRIKER Vivid display. You can even mark, save and transfer waypoints between the app and your STRIKER Vivid.
Crisp, Clear, Underwater images with the included GT52HW- Transom Mount Transducer are what you can expect from the STRIKER Vivid With CHIRP Sonar, CHIRP ClearVu and CHIRP SideVu you will see with exceptional clarity below and to the left and right of your vessel. View Structure, submerged objects and fish with clarity while the CHIRP Sonar provides excellent target separation. Plus, with Garmin's QuickDraw Software you can create maps with 1' contours. No special knowledge or software is required, simply fish and Garmin takes care of the rest. Maps will be instantly displayed and the best part is that these are your maps. Store up to 2 million acres of quickdraw contour maps - keep them for yourself or share within the Garmin QuickDraw community. It's totally up to you!
Ready to go, out of the box the STRIKER VIVID includes a tilt/swivel mount, cabling as well as both transom and trolling motor mounting hardware.
- Garmin STRIKER Vivid 9sv
- GT52-TM Transducer with 20’ cable
- 12 pin to dual 4 pin transducer adapter cable
- Power/Data Cable
- Tilt Mount
- Hardware
- Documentation
- One Year Warranty
- Vivid 7 Color Palette easily distinguishes fish and structure
- QuickDraw Contours – creates personalized HD fishing maps with 1’ contours
- Offers both ClearVu and SideVu Scanning sonar options
- GPS – Waypoint Marking, routes and tracks
- Comes packaged with a GT52 Transducer for crisp, clear sonar images below and to the sides of your boat
- Size: 11.1"W x 6.5"H x 2.4“D
Specs
- Model #: 010-02554-00
- 4-Pin Transducer Ports: 2
- Power Consumption: 9.0
- Current Draw 0.75 - 1.5 A
- Power Input: 12 to 20 Vdc
- Tracks: 50
- Tract Points: 50,000
- Waypoints/Favorites/Locations: 5000
- Mounting Options: Flush, tilt/swivel
- Display Size: 4.4" x 7.8" (11.2 x 19.8cm); 9" diag (22.8cm)
- Weight: 2.4 lbs. (1.1kg)
- Dimensions: 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0cm)
- Built-In Receiver: Yes
- Input: Keyed
- Displays Sonar: Yes
- Supports WAAS: Yes
- Navigation Routes: 100
- Waterproof: IPX7
- GPS: Yes
- Display Type: WVGA color
- Display Resolution: 800 x 480 pixels
