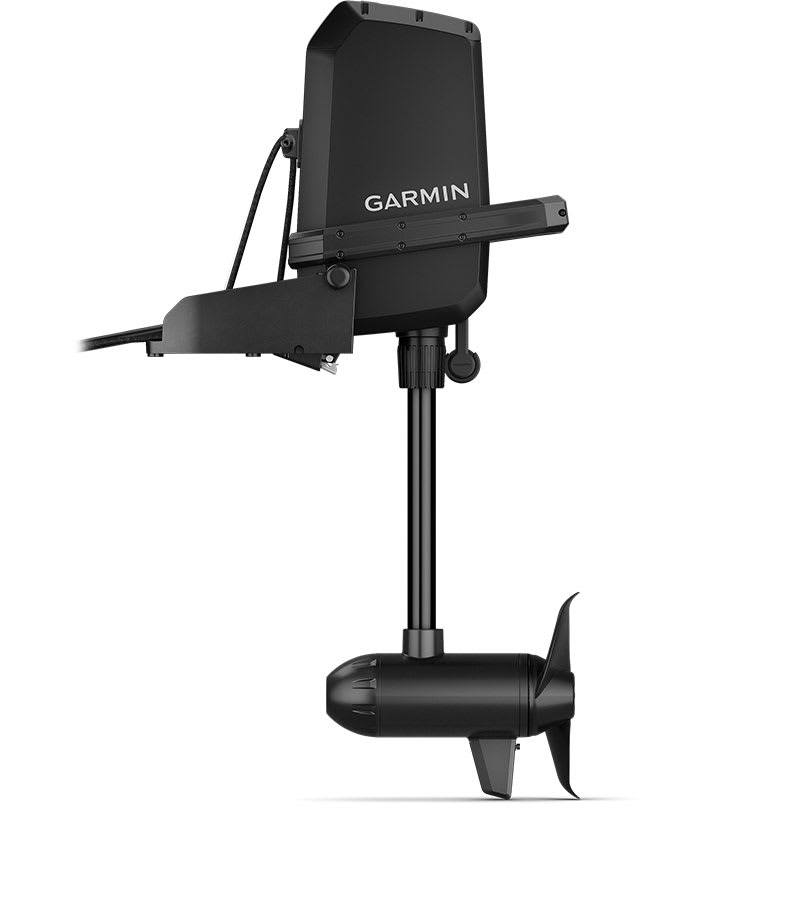

Garmin Force® Current Kayak Trolling Motor - Remote Control
🔧 Want This Custom Rigged?
Turn this kayak into your perfect fishing machine. Rod holders, electronics, premium accessories, and professional installation.
Configure Your Custom Rig →Description
PART NUMBER010-02864-10
LEGENDARY FORCE PERFORMANCE
The Force Current trolling motor is engineered for kayak anglers looking for a rugged propulsion system with superior maneuverability, wireless integration, and wireless throttle and steering control.
LEGENDARY FORCE PERFORMANCE AND RELIABILITY
WIRELESS THROTTLE AND STEERING CONTROL WITH THE INCLUDED REMOTE
STAY ON THE FISH WITH ANCHOR LOCK AND MULTI-BAND GPS
SIMPLE AND INTUITIVE INSTALLATION
WIRELESS INTEGRATION WITH GARMIN CHARTPLOTTERS
WIRELESS MAN OVERBOARD TAG
FLOATING REMOTE
Use the included remote to control throttle and steering with the wireless remote control. Want to control throttle and steering without setting the rod down? Check out the power steer pedals.
UNPRECEDENTED MANEUVERABILITY
Turn your boat quickly with full forward and reverse thrust in any direction. Weave through tight timber, turn in a tight circle, sneak along shorelines, and creep through weed beds while you fish. Use the included wireless handheld remote for point-and-go gesture steering.
CHARTPLOTTER INTEGRATION
Wireless integration with your Garmin chartplotters allows you to create routes and tracks for the trolling motor to follow while you fish. You can also adjust throttle and steering on the chartplotter control bar, adjust motor settings and more.
STAY PUT
The anchor lock technology with multi-band GPS provides our most precise boat positioning technology to help keep the boat in one place, even in windy conditions or strong current.
SAFETY FIRST
When wearing the included wireless man overboard tag, the motor cuts off if it detects you fall overboard.
POWER THAT LASTS
An efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.
STOW AND DEPLOY
Quickly stow or deploy the prop with one hand when you need to glide over shallow areas with the included stow rope and cleat kit.
Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.
TWO PROP OPTIONS
Use the high-efficiency prop to maximize battery life, or the weedless prop to cut through aquatic vegetation.
INDUSTRY STANDARD
The 4-hole mounting pattern makes installation easy on many different types of kayaks. The wireless foot pedals and rail system are also designed to accommodate a wide variety of installation methods.
LOAD UP AND GO
Get on and off the water fast with simple motor and pedal installation and removal.
WHISPER QUIET
Don’t spook the fish; the motor is extremely quiet above and below the water.
| Color | black |
|---|---|
| Mount style | 4-hole tilt mount |
| Max thrust | 50 lbs (ISO13342) using high efficiency propeller at 24V 30 lbs (ISO13342) using high efficiency propeller at 12V |
| Voltage | 12 V or 24 V |
| Electric steering | yes |
| Built-in heading sensor | yes |
| Built-in GPS | yes (dual frequency GPS) |
| Warranty | 3-year, limited lifetime on shaft |
| Water rating | IPX7 |
| Mounting location | stern |
| Wireless remote | yes (included) |
| Shaft length (from mount to top of drive motor) | 16.6" (max); 11.4" (min) |
| Power steer foot pedals (kayak) compatible | yes |
| Battery indicator | yes |
| Variable speed control | yes (20 steps) |
| quatix remote control supported | yes |
| Manual reverse control | yes |
Autopilot Features |
|
| Route following | yes |
|---|---|
| Anchor lock | yes |
| Smart Anchor Lock features | yes |
| Anchor lock jog | yes |
| Heading hold | yes |
| Cruise control | yes |
| Gesture features | yes (manual+, heading hold+, jog+) |
Power Steer Foot Pedals (Kayak) |
|
| Wireless communication | |
|---|---|
| Power installation | batteries (2 AA) |
| AA battery life | 1 full season |
| Water rating | IPX7 |
Remote Features |
|
| Display size | 1.2" (30.2 mm) diameter |
|---|---|
| Display resolution | 240 x 240 pixels |
| Display type | color, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter user-programmable keys | yes |
| Autopilot feature control | |
| Water rating | IPX7 |
| Battery life | typical use with backlight at low, 43 weeks |
| Floats | yes |
RUGGED DESIGN
The sturdy alloy shaft and components are built to endure harsh saltwater and freshwater environments with advanced corrosion protection.
